Over the side heaters for immersion in liquids.

16-04-2020

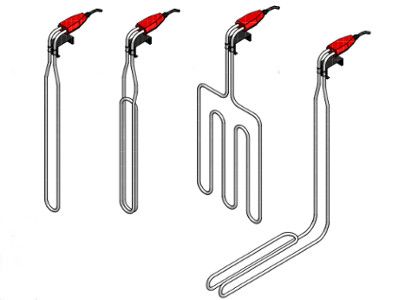

Over the side heaters for immersion in liquids.

Portable liquid immersion heaters are an economical and highly recommended solution if what you need is heating a tank temporarily.

Portable liquid immersion heaters are an economical and highly recommended solution if what you need is heating a tank temporarily. Although they can be used during all the year and continuously, this type of heaters allows a quick solution at specific times when it is necessary to keep the temperature a volume of liquid as there is no need to install a thread or a flange. They are also frequently used when multiple tanks are available because the over the side heaters can be easily transferred from one tank to another. We highly recommend not remove the heater while the heater is running or until it has been cooling down previously because it must always be submerged during operation to avoid overheating or melting.

We have a large stock of portable immersion liquid heaters. But we also are bespoke manufactures so we can manufacture according power, voltage and measurements that are required for each application. In the same way we can manufacture portable immersion heaters for corrosive liquids, with teflon tube, incoloy 800 or titanium if necessary, in addition to the most commonly used AISI316. In this way the heating elements can work in caustic solutions ensuring a long life of the resistance.

These kind of heaters usually include an epoxy handle for an easy handling at the same time that protects the connections from splashes. In addition, they also include a bracket to fix them on the tank wall. It is important to take into account the cold zone of the heater, since in this type of resistors there will always be a section of the resistance tube that is not submerged and it should never be an active zone to avoid overheating. We can also manufacture fully submersible portable heaters, such as the 6962H type for wine production with IP68 junction box.

If you need more information or a budget of this type of immersion liquid heaters, do not hesitate to contact our technical department.
